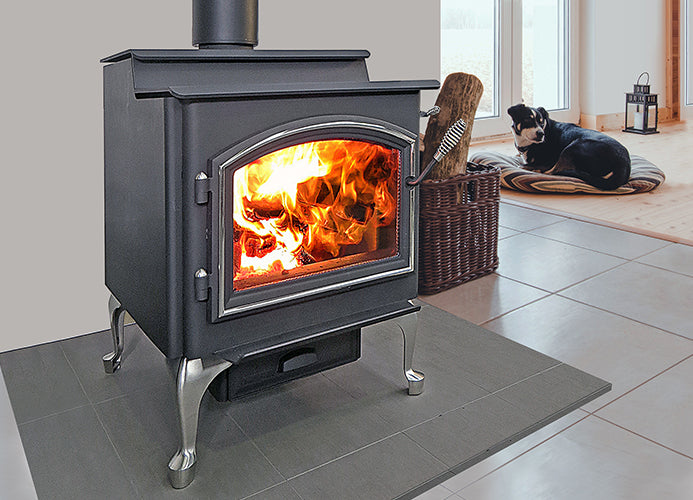

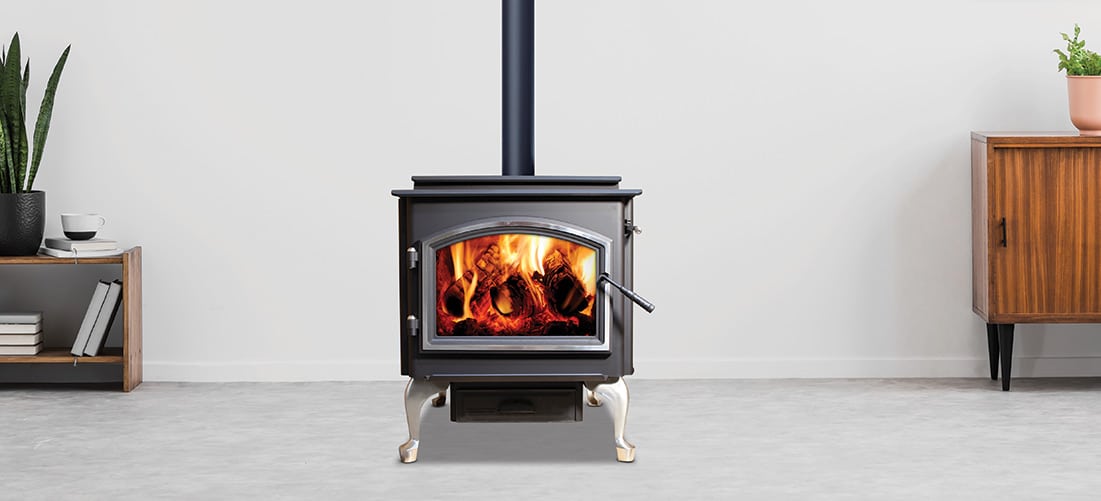

Quadra-Fire 5700 Step Top

Quadra Fire 5700 Step Top. The 5700 Step Top is the largest freestanding stove in the range, engineered for long, efficient burns and strong heat output in large living areas.

5700 Step Top — Overview

The 5700 Step Top blends robust steel construction with Quadra-Fire’s four-point combustion and Automatic Combustion Control for efficient, low-emission performance. Designed for longer unattended burns and reliable heat delivery, this stove suits substantial open-plan spaces.

5700 Step Top — Specifications at a glance

• Average efficiency: 65%
• Low particulate emissions: 1.5 g/kg
• Heating capacity: up to 37 sq metres
• Max burn time: 14–19 hours
• Width: 662 mm
• Height: 861 mm
• Depth: 699 mm
• Weight: 220 kg

Key features of the 5700 Step Top

• Quadra-Fire Four-Point Burn System for efficient combustion and improved heat output.
• Automatic Combustion Control (ACC) to help maintain steady, long burns.
• Heavy-duty steel construction with convection heat shields for safety and durability.
• Ash recovery system with removable ash pan for easier cleaning.
• Optional accessories: pedestal base, Queen Anne legs, satin nickel trim, convection blower and outside air kit.

Dimensions & portability

The 5700 Step Top is a substantial freestanding heater built for performance rather than portability. With a width of 662 mm and weight around 220 kg it requires two or more people for positioning and a suitable hearth or base for installation.

Fuel & setup

This stove is designed for seasoned hardwood. The this unit’s combustion design and ACC extend burn time while reducing emissions; for best results use dry, well-seasoned timber and follow local installation and flue requirements.

What’s included

• Freestanding stove body with standard trim
• Ash pan and internal ash recovery system
• Convection heat shielding (standard)
• Options available on request: pedestal base, alternate leg trims, blower and outside air kit

Who it’s for

The this unit suits homeowners needing a high-capacity, long-burn wood heater for large open-plan living or multiple-room heating. It’s ideal where heavy-duty construction, low emissions and long unattended burns are priorities.

Care & maintenance

• Empty the ash pan regularly and inspect the ash recovery tray.
• Have the flue and chimney swept annually or more often with heavy use.
• Check door seals and replace any worn gaskets to maintain combustion efficiency.
• Follow the manufacturer’s guidelines for servicing the ACC and optional blower.

Choosing the right option

If you're comparing options in this range, focus on how it will fit your space, how often you’ll use it, and what matters most day-to-day. For many households, the best choice is the one that’s easy to live with — straightforward to use, simple to keep looking good, and suited to Australian conditions. When you’re weighing up your shortlist, consider your layout, traffic flow, and whether you want something that’s more entertaining-focused or more everyday practical. If you’d like a second opinion, our team can help you narrow it down based on your space, style and how you plan to use it. A quick way to decide is to ask: does “this unit” describe what you’re actually trying to achieve in your outdoor area? Once you’re clear on the goal, this unit becomes much easier to compare across different options and configurations. Have a look at our entire range of Heating at Alfresco Outdoors & Heating
