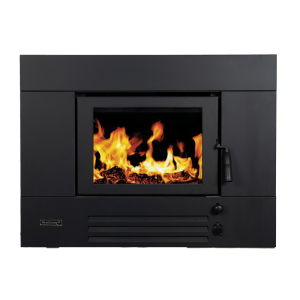

HeatCharm I500 Series 7 Inbuilt Wood Heater

HeatCharm I500 Series 7 Inbuilt Wood Heater. The I500 Series is designed to deliver reliable, efficient warmth for medium to large living areas while offering a generous viewing window and true inbuilt installation.

I500 Series — Overview

The I500 Series blends traditional wood-fire ambience with contemporary inbuilt performance. It’s engineered for Australian conditions and built to offer steady heat output with controlled combustion and low particulate emissions.

I500 Series — Specifications at a glance

• Heating capacity: up to 22 squares
• Particulate emissions: 1.3 g/kg
• Average heating efficiency: 66%
• Average peak power: 9.9 kW
• Firebox dimensions: 595H x 570W x 470D mm
• Overall dimensions: 730H x 980W x 495D mm
• Clearances to combustibles: Rear 25 mm (Z/C), Side 25 mm, Top 220 mm
• Hearth distance: either side of door opening 200 mm, front 400 mm
• Back of heater to centre of flue: 160 mm
• Despatch weight: 140 kg

I500 Series — Key features

• Large viewing window for an impressive fire display and improved ambience.
• Clean, efficient burn with low particulate emissions for better indoor air quality.
• Zero-clearance rear option suitable for inbuilt installation where specified.
• Robust construction and substantial firebox to accept standard-length logs.
• Designed for Australian installations with tested clearances and performance figures.

Dimensions & portability

The heater is a fixed inbuilt appliance — not portable — with overall dimensions of 730H x 980W x 495D mm and a despatch weight of 140 kg. These dimensions and weight make it a permanent, integrated feature once installed.

Fuel & setup

The I500 Series is configured for seasoned hardwood fuel to achieve the published heating output and efficiency. Installation must follow local building codes and the appliance manual; note the specified clearances to combustibles and hearth distances to ensure safe operation.

What's included

• Inbuilt wood heater (factory-configured model)
• Standard fittings as required for the inbuilt appliance (refer to installation manual)
• Product manual and compliance documentation supplied with the unit

Who it's for

This inbuilt wood heater suits homeowners wanting the aesthetic and heat of a real wood fire in medium to large open-plan living spaces. It’s ideal for those who prioritise a large viewing fire, proven performance and lower particulate emissions.

Care & maintenance

• Regular ash removal and annual flue inspection/cleaning recommended.
• Use seasoned hardwood to reduce creosote build-up and maintain efficiency.
• Check door seals and glass periodically; replace worn seals to preserve performance.
• Follow the supplied manual for service intervals and authorised service agent details.

Final notes

For safe operation and to achieve the published performance the this unit must be installed by a qualified installer in accordance with the appliance manual and local regulations.
